Sobre nosotros

Prensa hidráulica

La serie de formación es principalmente prensas hidráulicas, hay muchos tipos de prensas hidráulicas, incluida la prensa hidráulica de acción simple Y27, la prensa hidráulica de cuatro columnas Y32, la prensa hidráulica de una columna Y41, la prensa hidráulica de pórtico YL, la máquina de estampado de marco de puerta YM, etc. . Las prensas hidráulicas producidas por HARSLE tienen una estructura simple pero una alta relación rendimiento/precio. Sistema de control hidráulico equipado con unidad integral de válvula de cartucho, choque hidráulico duradero y pequeño. Control eléctrico independiente, rendimiento confiable, buenos efectos visuales y de audio, fácil mantenimiento. Las máquinas están disponibles en diseños totalmente personalizados.

Historial de desarrollo

2006

Estableció Nanjing HARSLE Machine Tool Co.,Ltd., dedicada a la producción, venta y mantenimiento de maquinaria para láminas de metal, como dobladoras, cizallas, punzonadoras y prensas hidráulicas.



2009

Proporcionar a los clientes un conjunto completo de máquinas para el procesamiento de puertas metálicas, el procesamiento de fregaderos metálicos y otras líneas de producción, y hemos firmado acuerdos de cooperación con agentes en el extranjero para brindarles a nuestros clientes mejores servicios.



2013

Las ventas anuales de comercio interior y exterior han superado los 10 millones de dólares. Cada vez son más los clientes que confían en nosotros y trabajan con nosotros, y además les hemos proporcionado los productos más adecuados. Con un fuerte volumen de exportación y excelentes comentarios de los clientes, Made-in-China.com lo seleccionó como proveedor certificado.

2017

Los principales productos de nuestra empresa: plegadora, cizalla y prensa hidráulica han obtenido el certificado de patente de modelo de utilidad certificado por la Oficina Estatal de Propiedad Intelectual. En los años siguientes, la plegadora CNC producida por nuestra empresa independiente obtuvo el certificado de patente de diseño de apariencia certificado por la Oficina Estatal de Propiedad Intelectual.

2019

Las prensas plegadoras e hidráulicas producidas por HARSLE han obtenido la certificación CE. Participamos en la 6ª Exposición BLECH de India en el mismo año y atrajo a muchos clientes extranjeros para realizar pedidos en el acto con máquinas de alta calidad y explicaciones profesionales.

2020

La punzonadora y la cizalla producidas por nuestra empresa han obtenido sucesivamente la certificación CE. En el mismo año, la empresa participó en la exposición de Dubái y aprobó la certificación del sistema de calidad ISO9001:2015.

Why Choose HARSLE

Choosing HARSLE means choosing good machine, good quality and good service.

Our Services

Sobre

Phone(free)

365 days a year, 7x24 hours per week and company telephone hotline (+86-25-56200956) service support.

Sobre

E-mail(free)

E-mail service support is available 24 hours per day, 365 days per year. E-mail: support@harsle.com

Sobre

Teamviewer(free)

The company established a technical support and response center, set up a dedicated person to carry out 7x24 hours on duty.

Sobre

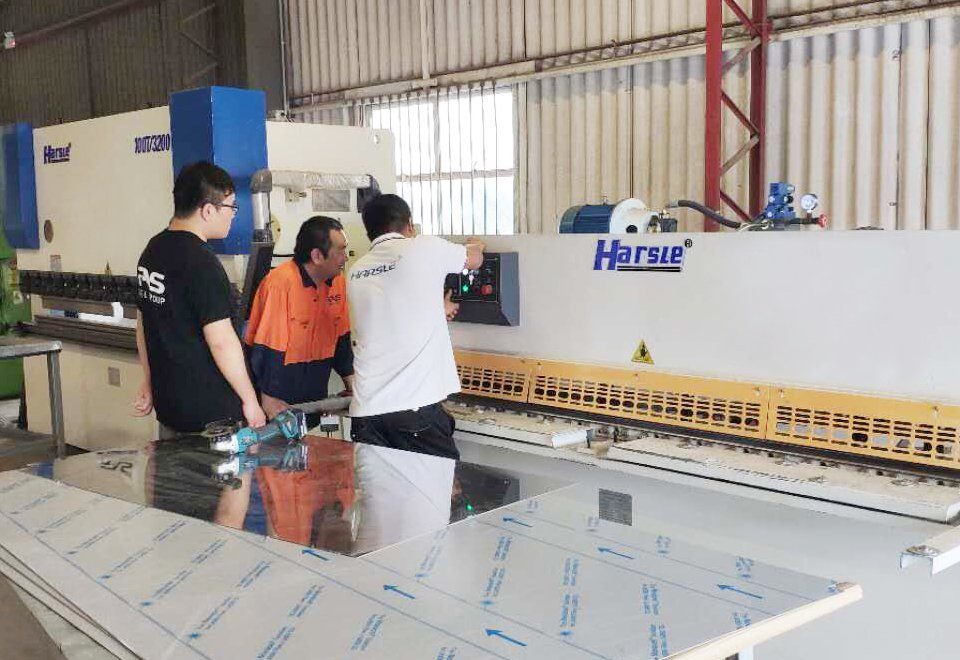

On Site(charge)

When necessary, the company will send experienced technical engineers to the site to provide services to users.

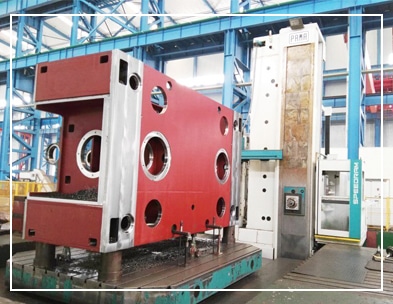

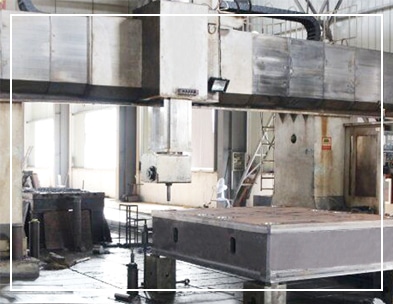

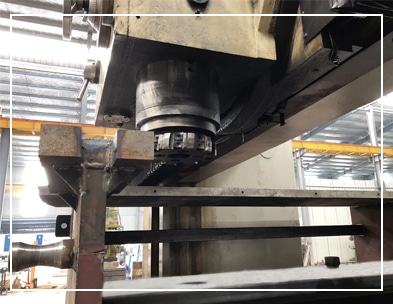

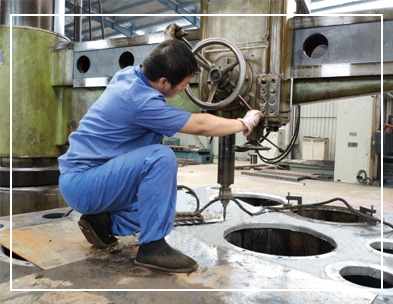

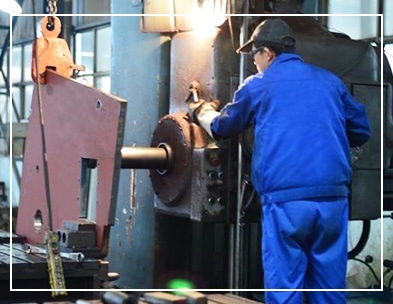

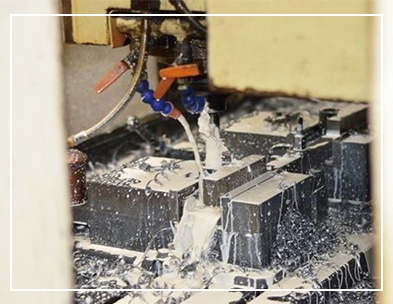

Fabrication Equipment

HARSLE has both experienced senior engineers and innovative young engineers, all of them are committed to building better machines.

Sobre
Sobre
Sobre
Sobre
Sobre
Sobre

Vídeo de prensa hidráulica

El programa de video siempre es lo mejor para ayudar a los clientes a elegir la máquina de prensa hidráulica adecuada, por lo que HARSLE se esfuerza por crear los videos más atractivos y útiles para que usted aprenda más sobre los detalles de nuestra prensa hidráulica de una mejor manera.

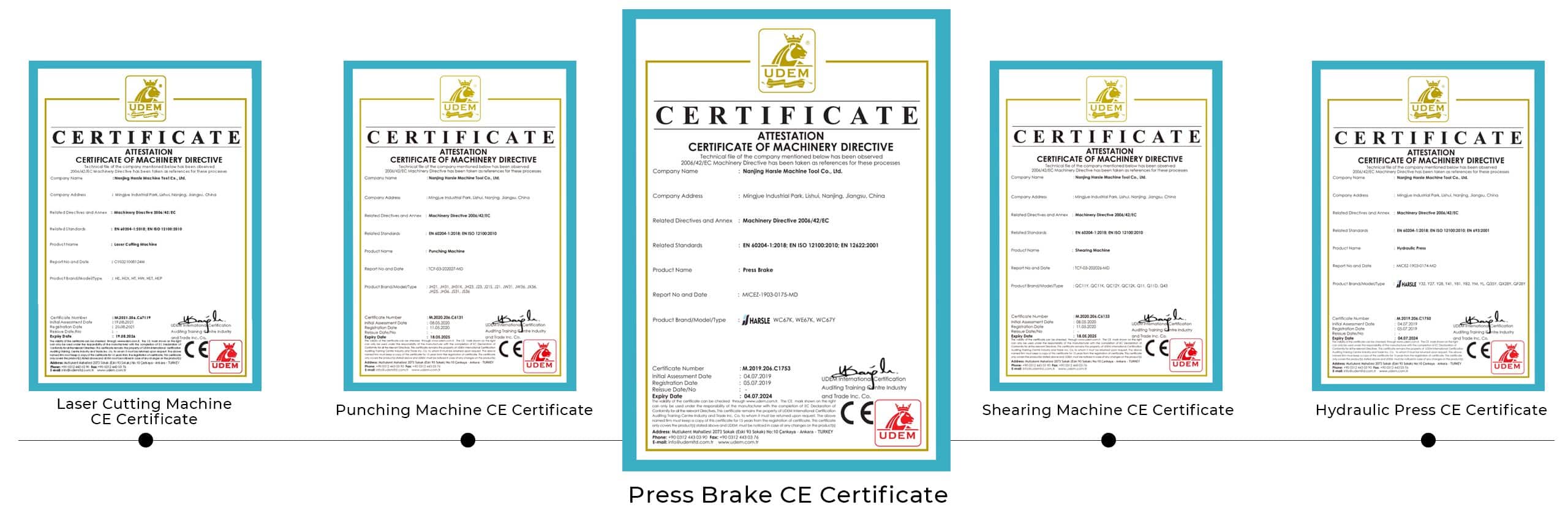

HARSLE CE Certificate

In line with EU CE standards, the quality of the machine is guaranteed

CE-Certificate
SHOW OUR COMPANY'S MEMBERS

OUR TEAM

HARSLE sales are experienced and friendly, so feel free to contact us when you have question about the machine

Sobre

División de flexión

Ivy Zhang
Sobre

División de esquila

Sissi Zhang
Sobre

División de punzonado

Wendy Xu
Sobre

Froming Division

Grace Guo
Sobre

División de puertas

Jimmy Chen
Sobre

División láser

Sandy Xue

Frequently Asked Questions

If you have more questions, please click the button below to view.

How do you care for a hydraulic press machine?

Keep the oil clean (filtered) and at the proper operating temperature. Replace the hydraulic fluid if it smells burnt. Monitor the condition of seals, replace if necessary, and keep polished parts (e.g. cylinder rods and shafts) clear and free of abrasives.

How does a hydraulic press multiply the force?

A liquid is not compressible .
When you press with a plunger diameter 10mm. in a closed and filled up wilt a liquid (eg hydtaulic oil) and move the small plunger 100mm. You have a (pipe) connection to a bigger cylinder with plunger diameter 100mm. Than the this bigger plunger will move only 1mm. however the mechanical force will be 100x as strong (friction not taken into account)
The oil pressure (force) is in ratio to the surface of the plunger (10x diameter = 100x surface/force).
If you close the pipe by a one direction shutter valve, you can repeat the pump movement and every stroke the big (100mm) plunger will move 1 mm. with 100 fold force.

How do hydraulic presses work?

Hydraulic systems work on the Pascal's Principle.
Pascal’s principle states that a pressure change occurring anywhere in a confined in-compressible fluid is transmitted throughout the fluid such that the same change occurs everywhere.
Hydraulic systems use an in-compressible liquid to transmit force from one location to another through the liquid medium.
Pascal's law can be stated as when there is an increase in pressure at any point in a confined fluid, there is an equal increase at every other point in the container.
Mathematically, We can write,
P1=P2 (since the pressures are equal throughout).
Since pressure equals force per unit area, then it follows that
F1A1=F2A2
It can be shown by substitution that the values shown above are correct, 1 pound / 1 square inches = 10 pounds / 10 square inches
Because the volume of fluid pushed down on the left side equals the volume of fluid that is lifted up on the right side, the following formula is also true.
V1=V2
by substitution,
A1×D1=A2×D2
A = cross sectional area
D = the distance moved or A1A2=D2D1
This system can be thought of as a simple machine (lever), since force is multiplied.The mechanical advantage can be found by rearranging terms in the above equation to
Mechanical Advantage(IMA) =D1D2 =A2A1
For the sample problem above, the IMA would be 10:1 (10 inches/ 1 inch or 10 square inches / 1 square inch).

What is the function of a hydraulic press machine?

The hydraulic press is composed of two hydraulic cylinders of different sizes, which are filled with water or oil. Water filling is called "hydraulic press"; Oil filled is called "oil press". There is a sliding piston in each of the two hydraulic cylinders. If a certain value of pressure is added to the small piston, according to Pascal's law, the small piston transmits this pressure to the large piston through the pressure of the liquid and pushes the large piston up. Let the cross-sectional area of the small piston be S1 and the downward pressure on the small piston be F1. Therefore, the small piston pair can be transmitted in all directions by the liquid with constant size ". The pressure on the large piston must also be equal to P. If the cross-sectional area of the large piston is S2, the upward pressure cross-sectional area generated by pressure P on the large piston is a multiple of the cross-sectional area of the small piston. From the above formula, if a small force is added to the small piston, a large force will be obtained on the large piston. In practice, a hydraulic press can be used to press plywood, extract oil, extract heavy objects, forge steel, etc.

How many types of hydraulic presses are there?

According to the structural form, it is mainly divided into:
Four column, single column (type C), horizontal, vertical frame, universal hydraulic press, etc.

It is mainly divided into:
Metal forming, bending, stretching, blanking, powder (metal, non-metal) forming, press fitting, extrusion, etc.

Hot forging hydraulic press:
Large forging hydraulic press is a forging equipment that can complete various free forging processes. It is one of the most widely used equipment in the forging industry. At present, there are 800t, 1600t, 2000t, 2500t, 3150T, 4000t, 5000t and other series of forging hydraulic presses.

Four column hydraulic press:
The hydraulic press is suitable for the pressing process of plastic materials. Such as powder product forming, plastic product forming, cold (hot) extrusion metal forming, sheet drawing, transverse pressing, bending, turning through, correction and other processes.

Four column hydraulic press can be divided into four column two beam hydraulic press, four column three beam hydraulic press, four column four beam hydraulic press, etc.

single column hydraulic press:
The working range can be expanded, the hydraulic cylinder stroke can be lengthened (optional) by using three-sided space, the maximum expansion is 260mm-800mm, and the working pressure can be preset; the heat dissipation device of the hydraulic system.

Gantry hydraulic press:
The machine parts can be assembled, disassembled, straightened, calendered, stretched, bent and punched, so as to truly realize multi-purpose of one machine. The worktable of the machine can move up and down, the size expands the opening and closing height of the machine, and the use is more convenient.

Double column hydraulic press:
This series of products are suitable for press fitting, bending and shaping, embossing and indentation, flanging, punching and shallow stretching of small parts; Molding and other processing technologies of metal powder products. It adopts electric control, with inching and semi-automatic circulation, can maintain pressure and delay, and has good slider guidance, convenient operation, easy maintenance, economy and durability. According to the needs of users, thermal instrument, ejector cylinder, stroke digital display, counting and other functions can be added.

How does a hydraulic press machine work?

The areas of the large and small plunger are S2 and S1, and the forces on the plunger are F2 and F1. According to Pascal principle, the pressure of closed liquid is equal everywhere, that is, F2 / S2 = F1 / S1 = p; F2=F1(S2/S1)。 It indicates the gain effect of hydraulic pressure. Like mechanical gain, the force increases, but the work does not gain. So, the moving distance of large plunger is S1 / S2 times that of small plunger.

The basic principle is that the oil pump transmits the hydraulic oil to the integrated cartridge valve block, distributes the hydraulic oil to the upper or lower chamber of the oil cylinder through each one-way valve and overflow valve, and makes the oil cylinder move under the action of high-pressure oil Hydraulic press is a device that uses liquid to send pressure. Pascal's law follows when liquid transfers pressure in a closed container. The hydraulic transmission system of four column hydraulic press composed of power mechanism, control mechanism, actuator, auxiliary mechanism and working medium. The power mechanism usually adopts the oil pump as the power mechanism, which is generally an integral oil pump. To meet the requirements of the movement speed of the actuator, one or more oil pumps selecting. Gear pump for low pressure (oil pressure less than 2.5MP); vane pump for medium pressure (oil pressure less than 6.3mp); plunger pump for high pressure (oil pressure less than 32.0mp). Pressure processing and forming of various plastic materials, such as extrusion, bending and deep drawing of stainless steel plate and cold pressing of metal parts. At the same time, it can also use for pressing powder products, grinding wheels, bakelite, and resin thermosetting products.

What is a hydraulic press used for?

The hydraulic press is a kind of machine which uses liquid as a working medium to transfer energy to realize various processes. In addition to forging, a hydraulic press can also use for correction, press fitting, packaging, pressing block, and pressing plate. Hydraulic press includes hydraulic press and hydraulic press. Water-based liquid as the working medium is called the hydraulic press, and oil as the working medium call the hydraulic press. The specifications of hydraulic presses are generally expressed in nominal working force (KN) or nominal tonnage (ton). Hydraulic presses for forging are mostly hydraulic presses with high tonnage. In order to reduce the size of equipment, large forging hydraulic presses often use higher pressure (about 35 MPa), sometimes ultra-high pressure above 100 MPa is also used. The working pressure of hydraulic press for other purposes is generally 6 ~ 25 MPa. The tonnage of hydraulic press is lower than that of hydraulic press.

Can I get overseas service from HARSLE?

HARSLE can provide overseas service including installation, commissioning, training and maintenance for any clients from all over the world, customer only assume the accommodation and airfare for our engineer and pay USD100 as the salary for our engineer everyday.

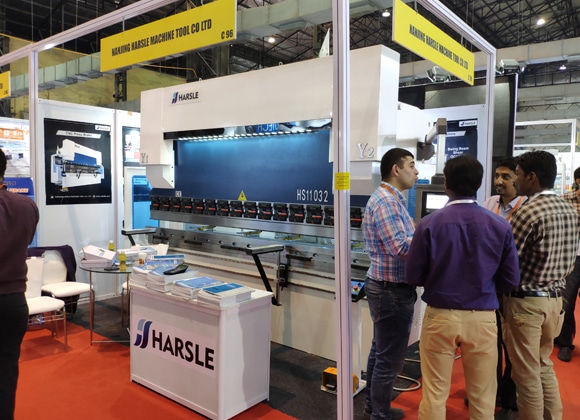

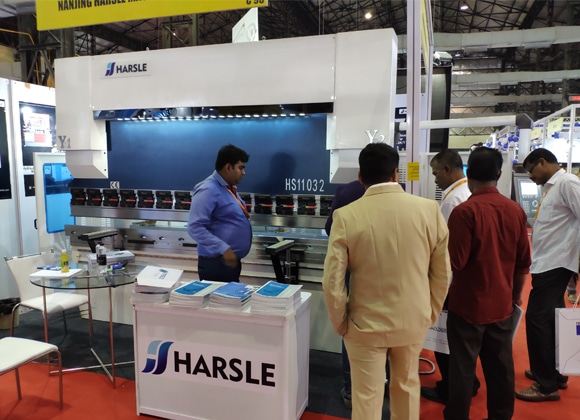

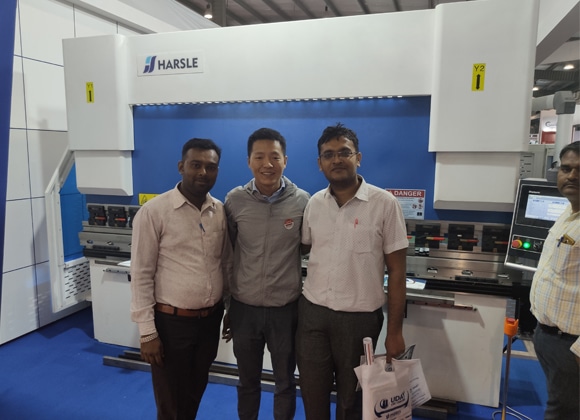

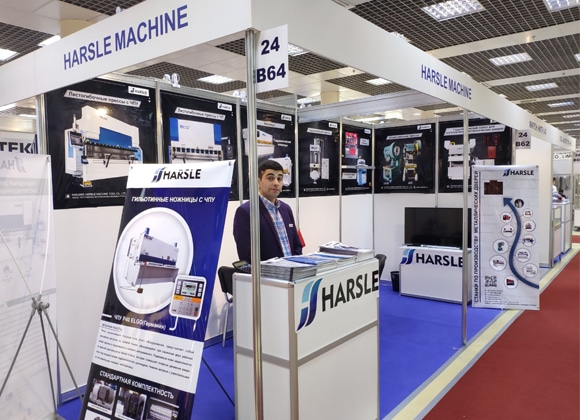

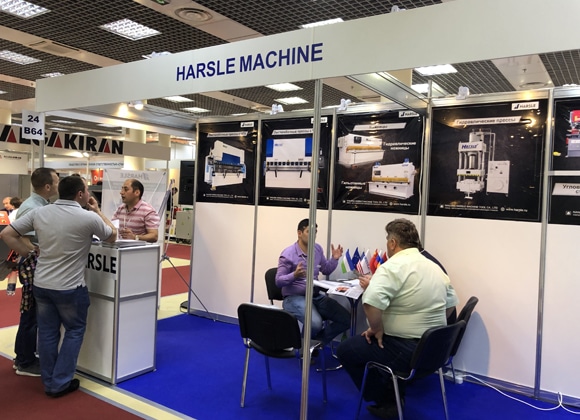

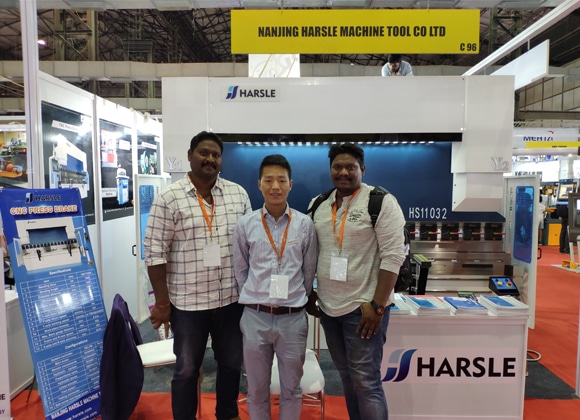

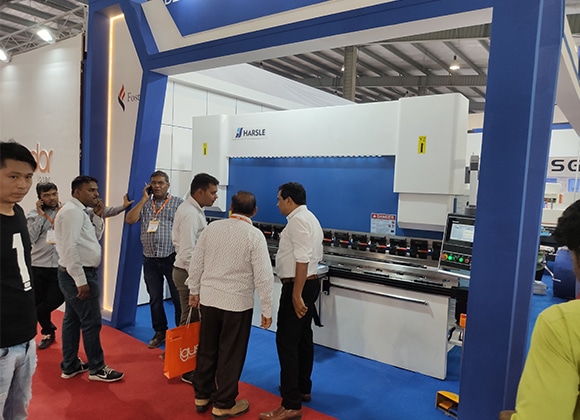

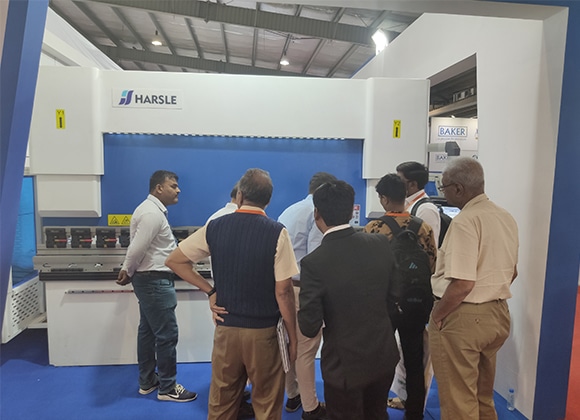

Estilo de exposición

HARSLE ha participado en varias exposiciones nacionales e internacionales cada año, con el fin de que nuestros clientes puedan ver nuestras máquinas en persona.
